Name: AltRider Skid Plate for the Honda CRF1100L Africa Twin/ ADV Sports
Brand: Yiphang-Hardware
SKU: AT20-2-1200
Price: 423.97 USD
Availability: InStock

AltRider Skid Plate for the Honda CRF1100L Africa Twin/ ADV Sports

$423.97

Shipping calculated at checkout.

Color — Black

Silver

Black

Free Shipping USA

In stock, ready to ship
Backordered

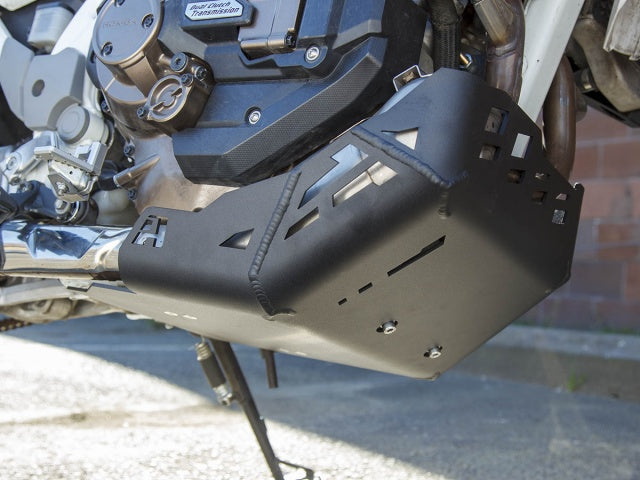

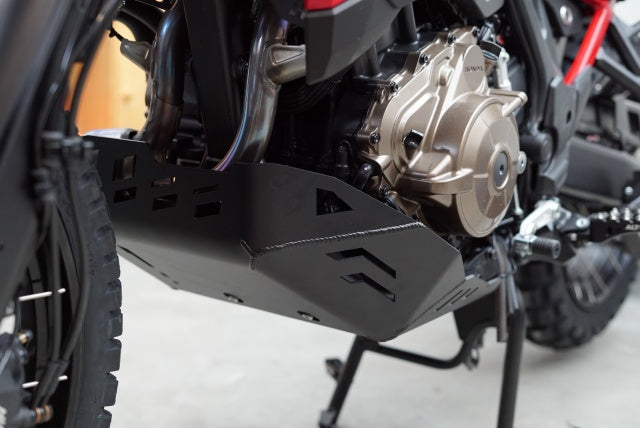

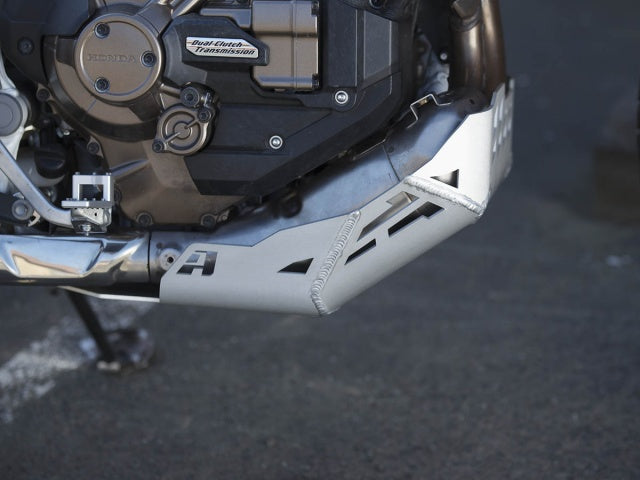

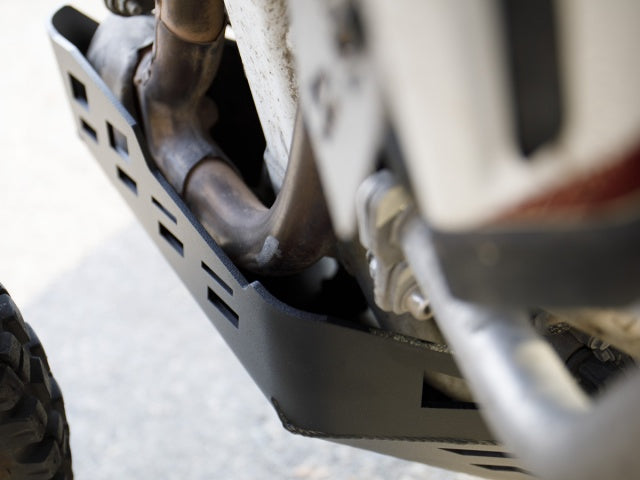

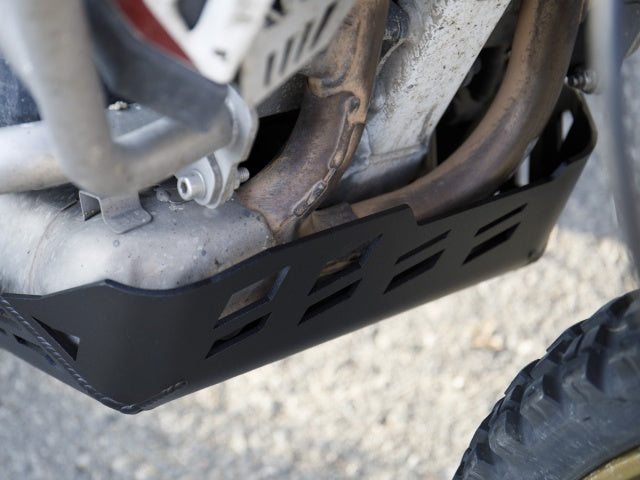

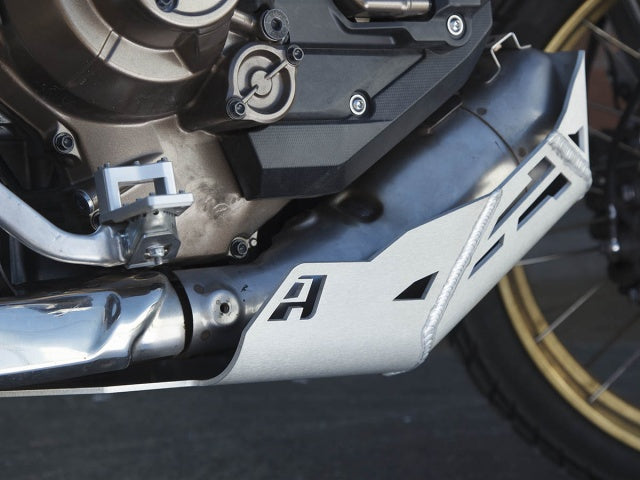

• Full Coverage: Protects the entire underside of the liquid-cooled engine, including the headers, from rocks and impacts.
• Maximum Clearance: Smooth flat bottom design preserves the Africa Twin's factory ground clearance and lets the plate slide over obstacles without hanging up.
• Four-Point Mount: Bolts to four factory hard points on the frame rails — not just one side — giving a stronger, more stable platform than most competitors.

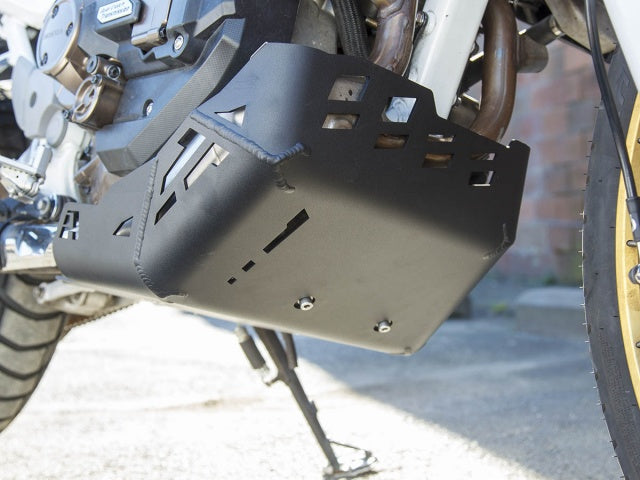

• Handles the Heat: Cutouts in the plate allow airflow and heat to escape, so the engine stays cool even when riding slowly over technical terrain.
• Quality Hardware: Stainless steel fasteners resist corrosion for long-term durability in wet and muddy conditions.
• No Weak Points: TIG-welded seams on every joint give the plate the strength other designs skip.

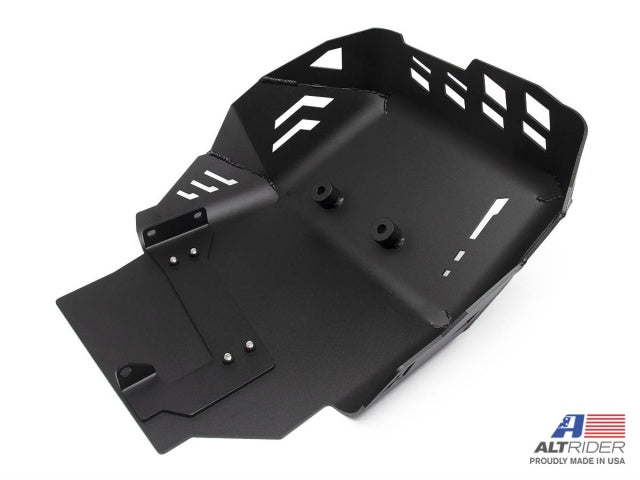

• Oil Changes Easy: The mounting bracket stays on the bike during oil changes, so you do not need to remove the skid plate for routine maintenance.

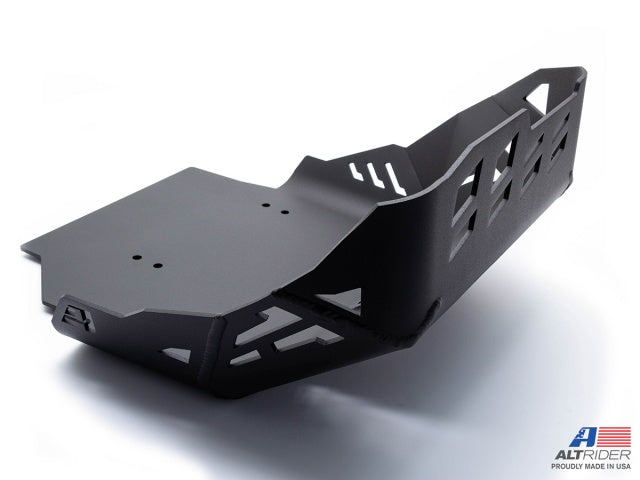

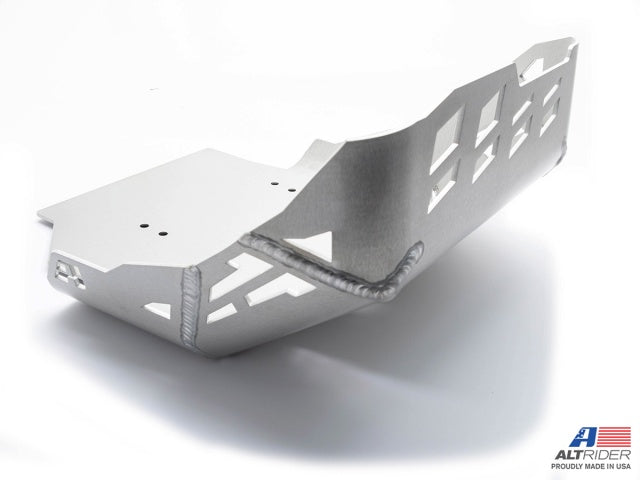

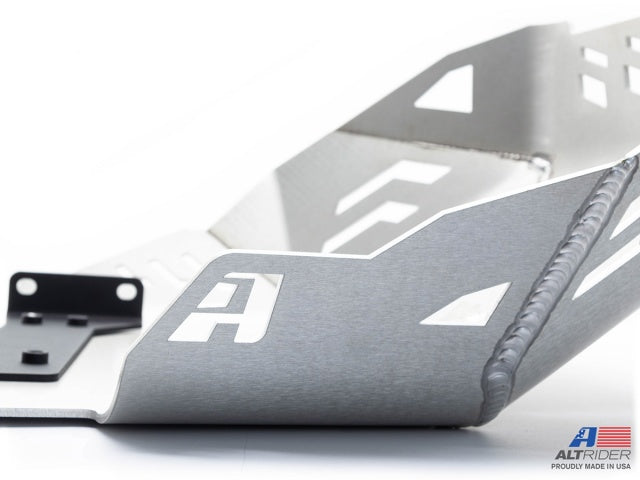

• Strong Construction: Single-piece 4.1 mm aluminum is laser cut, formed, and TIG welded, with 2-inch diameter bends that add strength and improve cornering clearance.

• Material: 6061 aluminum, single piece
• Thickness: 0.16 in (4.1 mm)
• Bend Diameter: 2 in (50.8 mm)
• Mounting Hardware: M8 (5/16 in) stainless steel bolts, 4 mounting points
• Finish: Grain finished, powder coat clear silver
• Weight: 8.25 lbs
• Dimensions: 9.25 × 18.7 × 19.5 in

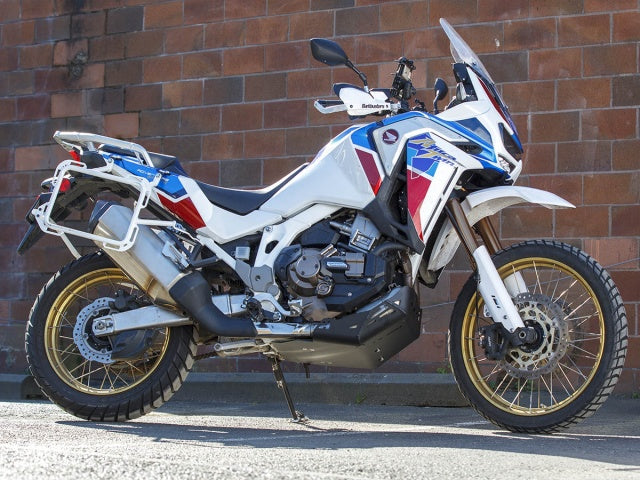

A lot can happen when a large Adventure bike leaves the pavement. The AltRider skid plate for the Honda CRF1100L Africa Twin was engineered to protect the full underside of your engine without giving back the ground clearance Honda worked hard to provide.

Most skid plates nest a bracket on one side of the frame. AltRider uses four bolt locations across both frame rails. That means a stronger, more stable platform — and it works with both DCT and manual transmission models. The bracket stays on the bike during oil changes, so routine maintenance does not require pulling the plate.

The smooth flat bottom is a deliberate choice. Corrugated designs add strength but cost clearance. Here, the four-point frame mount provides the rigidity, and the smooth surface lets the plate slide over rocks and roots instead of catching on them. The center stand remains compatible with the plate installed.

All hardware is included. Fits standard models out of the box. Adventure Sports model requires removal of the OEM skid plate before installation.

• Full Coverage: Protects the entire underside of the liquid-cooled engine, including the headers, from rocks and impacts.
• Maximum Clearance: Smooth flat bottom design preserves the Africa Twin's factory ground clearance and lets the plate slide over obstacles without hanging up.
• Four-Point Mount: Bolts to four factory hard points on the frame rails — not just one side — giving a stronger, more stable platform than most competitors.
• Handles the Heat: Cutouts in the plate allow airflow and heat to escape, so the engine stays cool even when riding slowly over technical terrain.
• Quality Hardware: Stainless steel resist corrosion for long-term durability in wet and muddy conditions.
• No Weak Points: TIG-welded seams on every joint give the plate the strength other designs skip.
• Oil Changes Easy: The mounting bracket stays on the bike during oil changes, so you do not need to remove the skid plate for routine maintenance.
• Strong Construction: Single-piece 4.1 mm aluminum is laser cut, formed, and TIG welded, with 2-inch diameter bends that add strength and improve cornering clearance.
• Hardware That Lasts: Stainless steel fasteners resist corrosion, and rubber shock-absorbing bumpers spread impact loads across the frame rails.

• Material: Single-piece 4.1 mm (0.16 in) aluminum, laser cut, grain finished, formed and TIG welded
• Formed Bend Diameter: 2 inch (50.8 mm)
• Mounting Hardware: M8 (5/16 in) stainless steel bolts; rubber shock-absorbing bumpers; captured threaded fasteners on bracket
• Weight: 8.25 lbs
• Dimensions: 9.25 × 18.7 × 19.5 in

All hardware is included. Fits standard models out of the box. Adventure Sports model requires removal of the OEM skid plate before installation.

• Full Coverage: Protects the entire underside of the liquid-cooled engine, including the headers, from rocks and impacts.
• Maximum Clearance: Smooth flat bottom design preserves the Africa Twin's factory ground clearance and lets the plate slide over obstacles without hanging up.
• Four-Point Mount: Bolts to four factory hard points on the frame rails — not just one side — giving a stronger, more stable platform than most competitors.
• Handles the Heat: Cutouts in the plate allow airflow and heat to escape, so the engine stays cool even when riding slowly over technical terrain.
• Quality Hardware: Stainless steel resist corrosion for long-term durability in wet and muddy conditions.
• No Weak Points: TIG-welded seams on every joint give the plate the strength other designs skip.
• Oil Changes Easy: The mounting bracket stays on the bike during oil changes, so you do not need to remove the skid plate for routine maintenance.
• Strong Construction: Single-piece 4.1 mm aluminum is laser cut, formed, and TIG welded, with 2-inch diameter bends that add strength and improve cornering clearance.
• Hardware That Lasts: Stainless steel fasteners resist corrosion, and rubber shock-absorbing bumpers spread impact loads across the frame rails.

All hardware is included. Fits standard models out of the box. Adventure Sports model requires removal of the OEM skid plate before installation.
