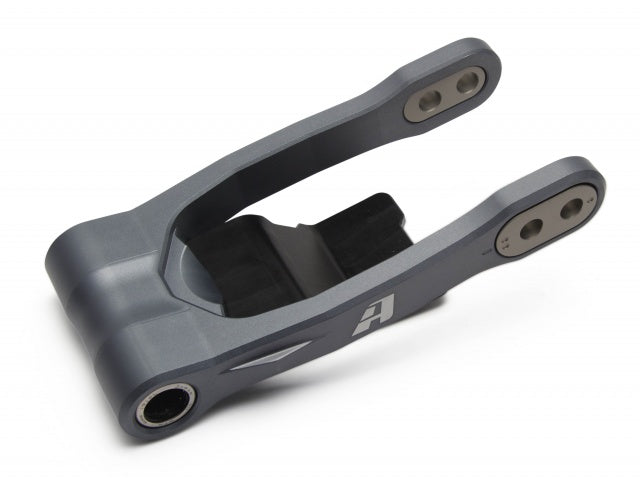

AT20-6-2202
• 4 Height Options: Adjust seat height in four positions — down 25mm or 12mm for technical terrain, up 6mm or 19mm for aggressive riding — so one bike works across all conditions.
• Easier Footing: Lowering the suspension lets you plant both feet on the ground more easily, which builds confidence on uneven or technical terrain.
• Built-In Link Guard: An integrated 6mm UHMW plastic guard protects the rear shock bearing — it flexes on impact and glides over rocks instead of cracking, unlike rigid guards.
• Quality Bearings: Full needle Japanese bearings with integrated seals match OEM standards and resist wear and contamination over time.
• Simple to Adjust: Height settings are laser-etched directly onto the inserts, and each insert mounts two ways — making it impossible to install at the wrong setting.
• Strong Construction: CNC-machined from aircraft-grade billet aluminum with an anodized finish for durability under hard off-road use.
• Material: CNC billet aluminum, anodized finish
• Guard Material: 6mm UHMW plastic (removable)
• Bearings: Japanese sealed full needle bearings
• Height Options: -25mm / -12mm / +6mm / +19mm
• Weight: 1.2 lbs
• Dimensions: 8.25 × 1.5 × 3.75 in
▶
Install Instructions for Adjustable Suspension Linkage:
• 4 Height Options: Adjust seat height in four positions — down 25mm or 12mm for technical terrain, up 6mm or 19mm for aggressive riding — so one bike works across all conditions.
• Easier Footing: Lowering the suspension lets you plant both feet on the ground more easily, which builds confidence on uneven or technical terrain.
• Built-In Link Guard: An integrated 6mm UHMW plastic guard protects the rear shock bearing — it flexes on impact and glides over rocks instead of cracking, unlike rigid guards.
• Quality Bearings: Full needle Japanese bearings with integrated seals match OEM standards and resist wear and contamination over time.
• Simple to Adjust: Height settings are laser-etched directly onto the inserts, and each insert mounts two ways — making it impossible to install at the wrong setting.
• Strong Construction: CNC-machined from aircraft-grade billet aluminum with an anodized finish for durability under hard off-road use.
• Material: CNC billet aluminum, anodized finish
• Guard Material: 6mm UHMW plastic (removable)
• Bearings: Japanese sealed full needle bearings
• Height Options: -25mm / -12mm / +6mm / +19mm
• Weight: 1.2 lbs
• Dimensions: 8.25 × 1.5 × 3.75 in
▶
Install Instructions for Adjustable Suspension Linkage:
